Katana Parts and Names With a Labeled Diagram
The main katana parts are the blade, tang, hilt, guard, blade collar, and scabbard. Their Japanese names are tōshin, nakago, tsuka, tsuba, habaki, and saya. Features such as the kissaki, shinogi, hamon, and hada describe particular areas or characteristics of the blade, rather than separate pieces attached to it.
Use this illustrated reference to find a name, locate the feature, and understand what a photograph can actually show. A museum may display a bare blade beside its mountings, while a shop may photograph a fully assembled object. Recognizing that difference prevents confusion about missing parts, measurements, and descriptions.
This is a guide to terminology and observation. It does not require taking a sword apart, removing fittings, polishing steel, or testing an edge. Historic objects, modern reproductions, training equipment, and decorative accessories need different assessments even when their descriptions use some of the same words.
Katana parts at a glance

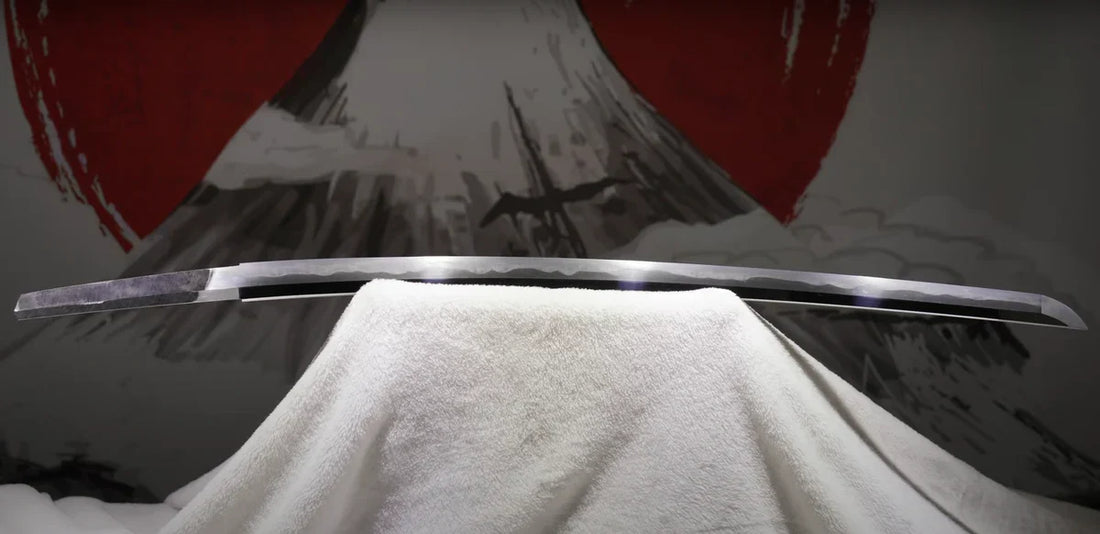

Start with the whole outline. The cutting edge and spine run along the blade; the tip occupies one end; the tang continues into the hilt at the other. The photograph above shows a blade outside its mountings. It is a documented museum view, not an invitation to remove a handle at home. In a mounted sword, several of these areas are concealed.
| Name | English meaning | Where to look |
|---|---|---|
| Tōshin | Blade | The steel blade as a whole |
| Kissaki | Point or tip section | At the forward end of the blade |
| Mune | Back or spine | Opposite the cutting edge |
| Nakago | Tang | The continuation concealed by the hilt |
| Tsuka | Hilt | The handle assembly |
| Tsuba | Guard | Between the hilt and blade collar |
| Habaki | Blade collar | Around the base of the blade |
| Saya | Scabbard | The fitted covering that receives the blade |
English translations are useful orientation aids, but they are not always exact substitutes. For example, a hilt is an assembly with several components, while a guard is a separate fitting. Transliteration also varies. You may see long vowels marked with macrons or written without them. Keep a Japanese term beside its plain English meaning when making notes, and preserve the source for later reference.
Find the blade landmarks
Tip, ridge, edge, and spine
The kissaki is the tip section, rather than simply the final sharp point. On many familiar katana forms, the yokote marks the transition between the body of the blade and this tip section. Do not draw a boundary into every photograph: some forms do not have the same arrangement, and lighting can make a real line hard to see.
The shinogi is the longitudinal ridge associated with shinogi-zukuri construction. It separates areas of the blade face, including the shinogi-ji toward the spine. The broad surface toward the cutting edge is often described using terms such as hira-ji. These are features of shape. They should not be confused with a welded seam, a decorative stripe, or an inscription.
The cutting edge is the ha, and the term hasaki refers to its edge line. The mune is the back opposite that edge. A side photograph can show their relationship, but it cannot establish the precise cross section, edge condition, or thickness at every point. Those require appropriate documentation and examination.
A groove is commonly called a hi; a broad groove may be described as a bōhi. It is not a channel for draining blood. The Kyoto National Museum introduction to sword appreciation explains grooves in relation to reducing weight. A groove’s presence does not identify a blade as an antique or prove a particular cutting performance.
Length and curvature are measurements
Nagasa is blade length, measured in the conventional way from the tip to the notch at the base near the spine. It is different from overall length, which may include the tang or a mounted hilt depending on the record. Sori describes curvature. Ask what was measured before comparing two numbers from different sellers or museums.
The Kyoto National Museum sword guide diagrams the relationship between the point, notches, tang, and measurement line. Use it alongside a documented object record. Do not infer a measurement from a photograph whose scale, perspective, or crop is unknown.
Hamon and hada are different features

Hamon describes the visible pattern associated with hardening along the edge. It may be relatively straight or irregular. Names for recognized patterns can be useful, but identifying a named pattern from one small, compressed photograph is often uncertain. A straight pattern is not automatically evidence of a fake, and a dramatic wave is not proof of age or quality.
Hada describes the visible texture of the worked steel. It concerns a different feature from the hamon. In a photograph, surface reflections, scratches, polishing effects, and image compression can complicate both. Compare photographs under consistent lighting and read how the institution describes the object before attaching a technical label.
These distinctions matter when reading commercial language. A listing might advertise a “wave pattern” without explaining whether it refers to hardening, etched decoration, or a visible steel pattern. Ask for an explicit description of materials and manufacture. A familiar Japanese term in a heading does not settle the question.
Surface features are also different from horimono, or carving. A carved design is deliberate decoration cut into a surface. It is not the same thing as steel texture or hardening. Keep separate notes for shape, surface activity, inscriptions, and decoration. That structure is more useful than collecting impressive-sounding terms.
Understand the tang without disassembly

The nakago is the part of the blade that extends into the hilt. A mekugi-ana is a peg hole. A mekugi is the peg itself. Those names refer to different things: the hole is in the tang, while the peg belongs to the assembled mounting. A bare blade photograph can show a hole without showing any peg.
A tang may carry a mei, or inscription, and yasurime, or file marks. Inscriptions can refer to a maker, date, place, ownership, or other information. A readable signature is not by itself proof that the named maker made the blade. Museum records use careful language such as attributed to, signed, or inscribed for a reason.
Tang condition and alteration can matter to specialist study. Shortening may change or remove original features. Multiple holes are not a simple age counter, and color is not a dependable way for a beginner to date an object. Avoid turning one visible clue into a claim that the complete record does not support.
For a consequential purchase or attribution question, ask for documentation and qualified examination. Do not remove a hilt merely to create a photograph for a casual comparison. Our katana authenticity guide discusses why appearance, signatures, paperwork, and seller claims need to be considered together.
Name the hilt and its fittings

Koshirae refers to the mountings of a sword. These may include the hilt, guard, scabbard, and associated fittings. Mountings are not necessarily the same age as the blade inside them. A museum label may provide different dates and materials for different components, and several craftspeople may be represented in the assembled object.
The tsuka is the hilt. Its wooden core may have a same covering, often described in English as rayskin, and a tsuka-ito wrapping. Samegawa names the skin covering rather than the wrapping cord. Do not assume every modern item uses traditional materials simply because its listing uses these terms. Read the actual material specification.
Fuchi is the collar near the guard end of the hilt; kashira is the cap at the other end. Menuki are ornaments associated with the hilt, commonly seen beneath the wrapping. Their imagery can be an important part of the mounting’s design. Decoration, however, does not tell you whether the underlying object is suitable for training.
The tsuba is the guard. Guards vary in outline, material, construction, and ornament. The museum example above contains multiple copper alloys and gold; it should not be described as an iron guard. This is a good reason to read an object-specific record instead of assigning one material to all examples of the same fitting.
The habaki is the fitted metal collar around the blade near its base. Seppa are washers associated with the assembly around the guard. These small components are easy to miss in a full-length product image. Their names help you ask a precise question, but photographs do not establish how securely an assembly fits.
The NBTHK Sword Museum introduction to mountings explains the relationship between mounting styles and fittings. For a more visual introduction to surface detail, see our guide to appreciating a katana. This parts reference concentrates on vocabulary rather than repeating that broader discussion.
Separate the scabbard from a storage mounting
Saya is the scabbard. On many mountings, the kurikata is a fitting on its side through which a sageo cord passes. Koiguchi refers to the mouth of the scabbard; kojiri refers to its end. These names locate features, but the materials and arrangement vary. Some may be visually understated or absent as separate ornamental fittings.
A shirasaya is a plain wooden storage mounting. It should not be confused with a fully equipped decorative or wearing mounting. The wood is part of a storage system for a specific object. A similar-looking modern product photograph does not establish the same construction, fit, or preservation suitability.
A blade and its scabbard should be discussed as fitted objects. Do not assume that two pieces with similar advertised lengths are interchangeable. A display stand is another separate item with its own support requirements. Our katana display guide covers planning a stable, secure location without treating a decorative arrangement as conservation advice.
Blade forms are not a list of detachable parts
Terms ending in zukuri describe forms of blade construction or shape. Shinogi-zukuri has a prominent longitudinal ridge and the familiar tip arrangement seen on many katana. Hira-zukuri is a flatter form without that same ridge arrangement. Other terms describe further variations. These names belong in a discussion of form, not a checklist of accessories.
The difference is practical when searching. Someone asking “what is the sword guard called?” needs tsuba. Someone comparing blade cross sections may need a guide to zukuri forms. Combining both into a list of “six katana blades” can obscure the answer and make a beginner think each term is an interchangeable product category.
Avoid attaching a universal performance ranking to a shape name. Dimensions, condition, materials, manufacture, and intended use also matter. This reference does not classify one historical form as the best for combat. For broader categories, use our Japanese sword types guide and compare documented examples rather than dramatic claims.
Use the vocabulary to read a description
| Question | Useful evidence | What the term alone cannot prove |
|---|---|---|
| Which part is shown? | A complete image plus a labeled detail | Whether hidden components are sound |
| What is the material? | An explicit component-by-component specification | That traditional words imply traditional materials |
| How long is it? | Blade and overall measurements identified separately | That every “length” means nagasa |
| Who made it? | Qualified attribution and supporting documentation | That a signature authenticates itself |
| What is it intended for? | Clear manufacturer and instructor requirements | That katana-shaped means suitable for practice |
Imagine a listing that says only “katana with hamon, authentic tsuba, 40 inches.” It leaves important questions unanswered. Does the length refer to the mounted object? What is the guard made of? How was the visible pattern produced? Is the item decorative? Ask for those facts before treating the vocabulary as evidence of quality.
For cultural designs beyond swords, our Japanese mask types guide provides a separate introduction to mask names and imagery. Shared visual themes do not make a modern accessory an antique sword fitting. Explore each object on its own terms and check current product descriptions before buying.
Make a useful observation record
When studying a museum photograph, write the institution and object number first. Then record which view you are using: bare blade, complete mounting, guard detail, or tang detail. This makes your notes traceable and prevents details from two different objects becoming mixed together. If a caption gives separate dates for the blade and fittings, keep those dates separate in your notes.
Next, list visible features without turning them into conclusions. “A groove is visible” is a stronger observation than “this was made for a particular warrior.” “The record describes a signed blade” is more accurate than independently declaring the signature genuine. Leave an unknown field blank rather than filling it from another example.
Finally, note the limits of the image. A dark area might be shadow; a bright line might be reflection; a crop may hide the base of the blade. Record the questions that need another view or specialist advice. This simple habit turns a vocabulary list into a reliable way to study objects, compare descriptions, and avoid repeating unsupported claims.
Common questions about katana parts
What is the handle of a katana called?
The handle or hilt is the tsuka. The wrapping is tsuka-ito, while samegawa refers to the skin covering beneath it. They are related components, not three names for the same material.
What is the guard called?
The guard is the tsuba. Its material, shape, and decoration vary, so an individual object record or product specification is more useful than assuming every guard is iron.
Are hamon and hada the same thing?
No. Hamon concerns the visible hardened-edge pattern. Hada concerns the texture of worked steel. Lighting and surface condition can make both difficult to judge from photographs.
What is the metal piece above the guard?
The blade collar is the habaki. Washers associated with the guard are seppa. A clear detail photograph helps distinguish these closely placed components.
Can I identify all the parts from one image?
Usually not. A mounted sword hides the tang, and a bare blade photograph omits the hilt and scabbard. Use a whole-object view, details, and documentation together.
Does knowing the Japanese names prove authenticity?
No. Terminology helps you describe an object and ask better questions. It does not establish age, maker, condition, authenticity, or safe intended use.
Image sources: public-domain photographs from The Metropolitan Museum of Art. Object records: Takahira blade, Masazane blade, and Masayoshi guard. Labels and crops are educational additions.
